SN/SL 70
2-way passive loudspeaker · Single Wire
Frequency response (+/- 3 dB) | 45 - 25.000 Hz |
Impedance | 4 ohms |
Sensitivity | 86 dB (1 W / 1 m) |
Max. acoustic pressure | 105 dB |
Frequency dividing network | 2nd order impedance corrected filter |
Function principle | bass reflex |
Bass and midrange system | one long excursion cone speaker 145 mm alloy cone, special coated |
Midrange and treble-system | one dome tweeter 28 mm |
Cabinet | manufactured of 15 / 20 mm thick natural slate |
Dimensions (H x W x D) | 330 x 190 x 250 mm |
Weight | 17,5 kg |
Data sheet

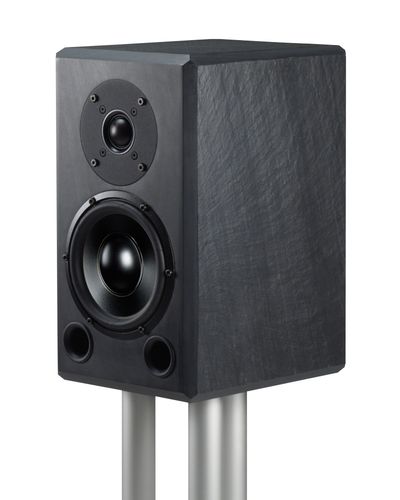

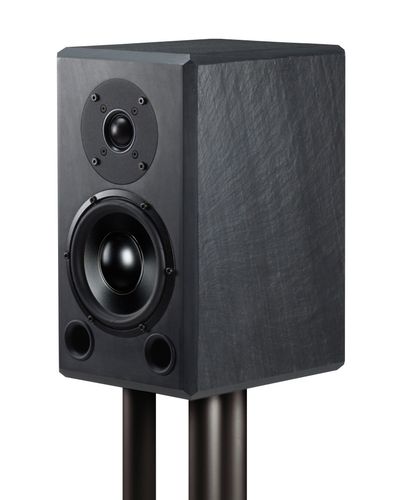

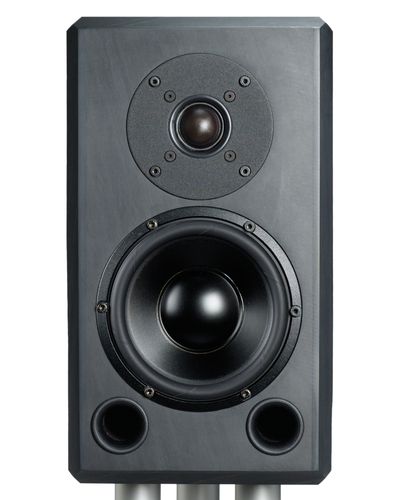

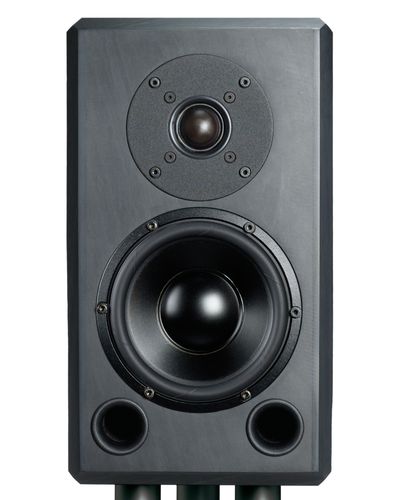

Low-resonance natural slate cabinet
SN - natural surface
SL - polished and lacquered in all RAL and available car colours
SN - natural surface
SL - polished and lacquered in all RAL and available car colours

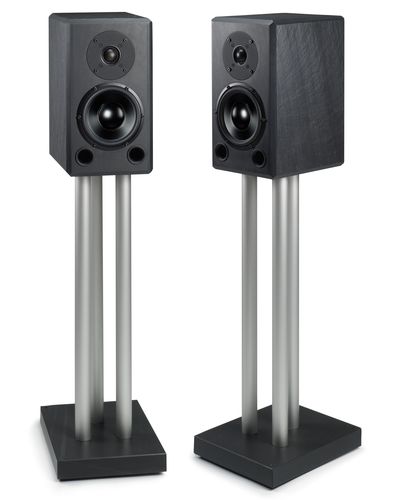

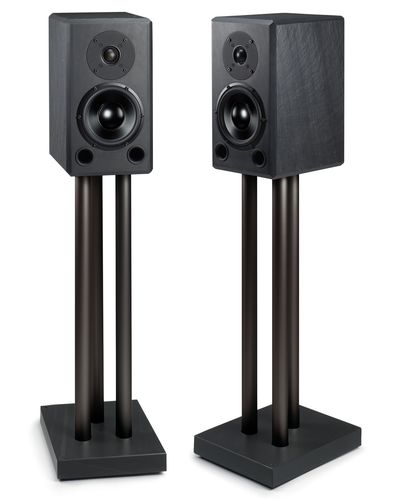

Speaker stand: black or silver anodized, sand filled aluminium tube (hight: 690 mm incl. floor plate, weight: 11 kg) with massive slate floor plate (234 mm x 300 mm x 40 mm), adjustable.
