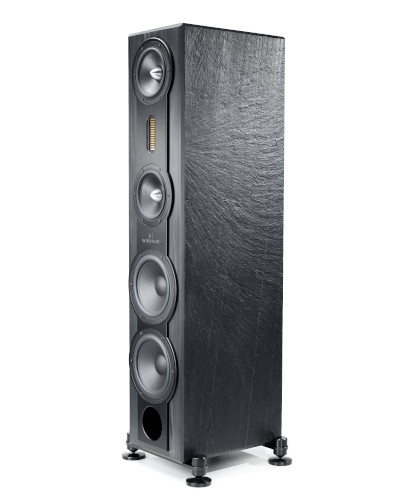

SN/SL 570M
3-way passive loudspeaker · Bi-wired
| Frequency response (+/- 3 dB) | 24 - 27000 Hz |
| Impedance | 4 ohms |
| Sensitivity | 92 dB (1 W / 1 m) |
| Max. acoustic pressure | 112 dB |
| Frequency dividing network | 1st + 2nd order phase and impedance corrected filter. Optimized, selectively separated crossovers |
| Function principle | bass reflex |
| Bass system | two 220 mm FISCHER & FISCHER cone speakers with carbon paper foam sandwich membrane |
| Midrange system | two 180 mm FISCHER & FISCHER cone speakers with carbonized paper, carbon foil sandwich membrane and aluminium phaseplug |
| Treble system | one FISCHER & FISCHER Air Motion Transformer (AMT) special custom made by Mundorf |
| Connecting terminal | Bi-wiring, 63 A connecting terminals, rhodium plated |
| Cabinet material | 20 / 23 mm thick low resonance natural slate |
| Floor system | aluminium, black or silver anodized, levelable |
| Dimensions slate cabinet (H x W x D) | 1245 x 275 x 400 mm |
| All over dimensions, incl. floor system | 1290 x 380 x 455 mm |
| Weight | 115 kg |
Data sheet
Low-resonance natural slate cabinet, 4-chamber system
SN - Natural slate
SL - polished and varnished, available in any RAL colour
SN - Natural slate
SL - polished and varnished, available in any RAL colour
